Swing Gate Valves ( Dealer for Jash Engineering Ltd.)

We provide our range to ALL OVER THE WORLD. Majorly we target customers from Bangalore, Hyderabad, Chennai, Visakhapatnam, Bellary, Pune, Chhatrapati Sambhajinagar (Aurangabad), Mahad, Chiplun, Lote, Mumbai, Nagpur, Goa, Baddi, Indore, Kolkata, Chandigarh, Delhi.

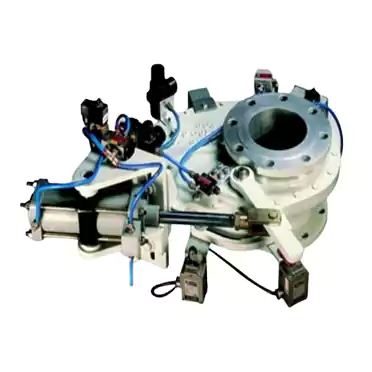

SWING VALVE TYPE : KU-HP+PAM

Application:

• As a discharge and filling unit to feed continuously in and out of a vacuum drying unit
• Below Bag Filter
• As main inlet valve for pressure vessel in dense phase pneumatic conveying system

Media / Material: Suitable for all dry & free flowing materials requiring pressure or vacuum tight shut-off
Features:

• Uni-directional valve with peripheral face sealing
• Full flanged rigid housing
• Patented inflatable Pressure Airmatic seal for pressure and vacuum tight shut-off

Pressure testing: Leakage rate 1 as per DIN 3230 in both directions i.e. zero leakage

SWING VALVE TYPE : KU-HP+PAM

SWING VALVE TYPE : KU-HP+PAM

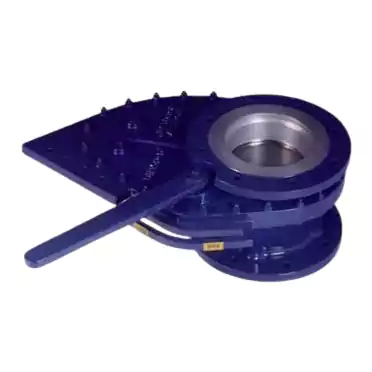

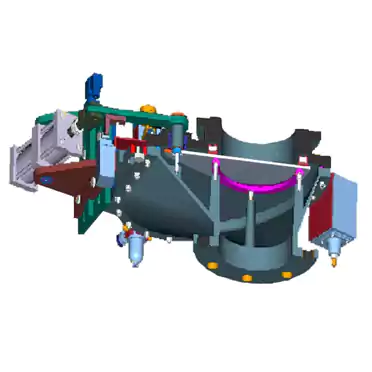

SWING VALVE TYPE : KU-STD

Application:

• For quick & reliable shutoff requirements
• For coarse metering of bulk solids
• For high cycle operations
• For environmentally safe handling of hazardous materials
• For low vacuum applications below bag filter
• For high temperature applications

Media / Material : Suitable for all dry & free flowing materials requiring pressure or vacuum tight shut-off over high number of cycles

Features:

• Unidirectional valve with peripheral face sealing
• Soft seated wiper type sealing system
• Swinging operation of gate
• Opening / closing and 3 seconds
• Zero seat leakage at 1 bar
• Zero leakage to environment
• Encapsulated gate operation
• Glandless valve

SWING VALVE TYPE : KU-STD

SWING VALVE TYPE : KU-STD
