We are leading Supplier, Wholesaler, Dealer, Trader of Compressed Air Piping Fittings (Polymer & Aluminium), Compressed Air Pipe Fixing Clips, Classic Pipe Fixing Clips, 90 Degree Equal Elbows, AL Series Couplings, Polymer Series Couplings, Modern Pipe Fixing Clips, Polymer Tee Connectors, Polymer Male Connectors, Aluminium T Connectors, Reducing Tee, End Caps, Polymer Male Connectors, AL Male Connectors, Flanges, Inline Ball Valves, Butterfly Valves, Saddle Drop Outlets, educers, Flanges, N Line Ball Valves, from Baner, Pune, Maharashtra, India.

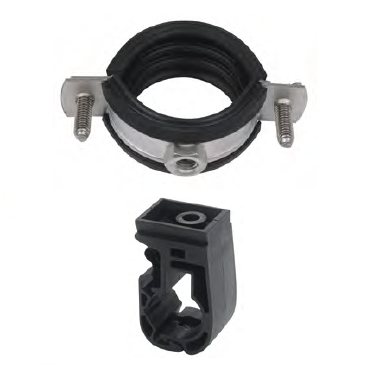

CLASSIC & MODERN PIPE FIXING CLIPS
- Easy Adaptation to all piping network Elegant design for suspension of pipes from
- Wall, Beams, Partitions cable trays.
| Od |
Thread Rod |
Weight Kg |
| 25.4 |
6 |
0.027 |
| 40 |
6 |
0.035 |
| 50.8 |
8 |
0.068 |
| 63 |
10 |
0.073 |
| 84.8 |
10 |
0.168 |
| 101.8 |
10 |
0.259 |
| 168 |
10 |
0.54 |

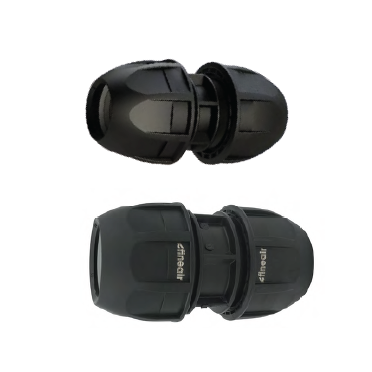

POLYMER SERIES COUPLER
- Quick connect and disconnect Interchangeable and reusable for 25,40,50and 63mm.
- PPE series Consistent internal diameters to reduce interruption of flow inside the fittings.
| Outer Diameter (mm) |
Total Length (mm) |
Weight per piece (kg) |
| 25 |
115 |
0.130 |
| 40 |
200 |
0.400 |
| Outer Diameter (mm) |
Total Length (mm) |
Weight per piece (kg) |
| 50 |
115 |
0.401 |
| 63 |
200 |
0.631 |

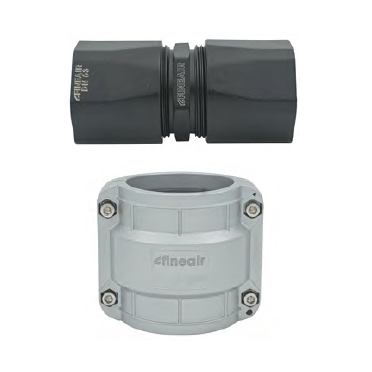

AL SERIES COUPLER
- Quick connect and disconnect Highly durable threads which makes it more reusable Interchangeable.
- Nuts with AL series fittings Consistent internal diameters to reduce interruption of flow inside the fittings.
| Outer Diameter (mm) |
Total Length (mm) |
Weight per piece (kg) |
| 50 |
170 |
0.720 |
| 63 |
174 |
0.860 |
| Outer Diameter (mm) |
Total Length (mm) |
Weight per piece (kg) |
| 80 |
120 |
1.033 |
| 100 |
120 |
1.417 |
| 168 |
140 |
2.570 |

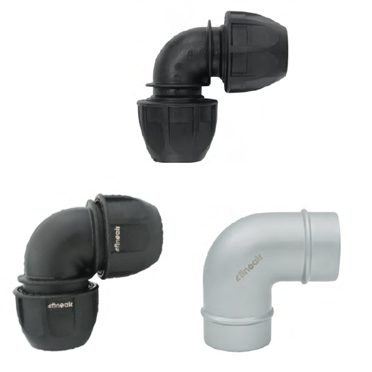

90 DEGREE EQUAL ELBOW
| Outer Diameter (mm) |
Total Height (mm) |
Weight per piece (kg) |
| 25 |
92 |
0.120 |
| 40 |
137 |
0.400 |
| Outer Diameter (mm) |
Total Height (mm) |
Weight per piece (kg) |
| 50 |
156 |
0.800 |
| 63 |
170 |
1.000 |
| Outer Diameter (mm) |
Total Height (mm) |
Weight per piece (kg) |
| 50 |
156 |
1.800 |
| 63 |
170 |
2.800 |
| 80 |
146 |
1.045 |
| 100 |
136 |
1.414 |
| 168 |
270 |
3.014 |

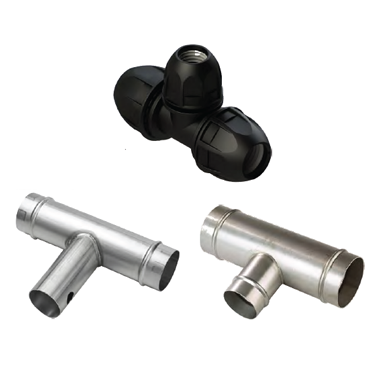

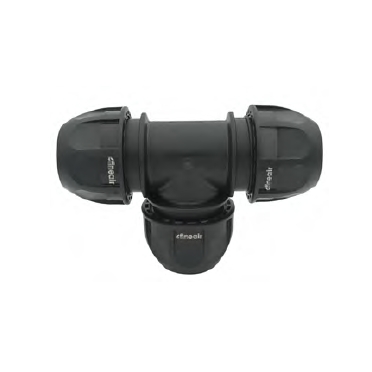

POLYMER TEE CONNECTORS
| Outer Diameter (mm) |
Height (mm) |
Length (mm) |
Weight per piece (kg) |
| 25 |
70 |
152 |
0.120 |
| 40 |
110 |
210 |
0.400 |
| 50 |
122 |
231 |
0.427 |
| 63 |
156 |
245 |
0.651 |

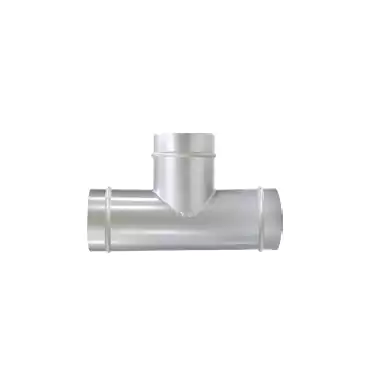

AL TEE CONNECTORS
| Outer Diameter (mm) |
Height (mm) |
Length (mm) |
Weight per piece (kg) |
| 50 |
70 |
152 |
1.750 |
| 63 |
110 |
210 |
3.150 |
| 80 |
122 |
231 |
1.070 |
| 100 |
156 |
245 |
1.987 |
| 168 |
180 |
360 |
4.980 |
REDUCER TEE
| Outer Diameter (mm) |
Height (mm) |
Length (mm) |
Weight per piece (kg) |
| 50 x 25 |
122 |
231 |
0.355 |
| 50 x 40 |
156 |
245 |
0.430 |
| 63 x 40 |
166 |
249 |
0.540 |
| 63 x 50 |
177 |
249 |
0.615 |
| 80 x 40 |
105 |
292 |
1.050 |
| 80 x 50 |
160 |
292 |
1.125 |
| 80 x 63 |
164 |
292 |
1.236 |
| 100 x 40 |
118 |
312 |
1.586 |
| 100 x 50 |
173 |
312 |
1.754 |
| 100 x 63 |
177 |
312 |
1.724 |
| 100 x 80 |
136 |
312 |
1.789 |
| 168 x 63 |
220 |
360 |
3.104 |
| 168 x 80 |
185 |
360 |
3.145 |
| 168 x 100 |
185 |
360 |
3.249 |

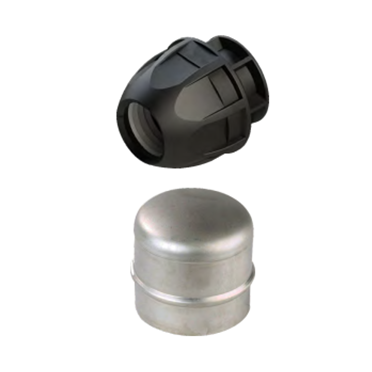

END CAP
| Outer Diameter (mm) |
Height (mm) |
Length (mm) |
Weight per piece (kg) |
| 20 |
45.5 |
62.5 |
0.145. |
| 25 |
47 |
75 |
0.160 |
| 40 |
54 |
98.5 |
0.190 |
| 50 |
67 |
107 |
0.463 |
| 63 |
72.5 |
111 |
0.510 |
| 80 |
- |
123 |
0.720 |
| 100 |
- |
123 |
0.829 |
| 168 |
- |
116 |
1.350 |

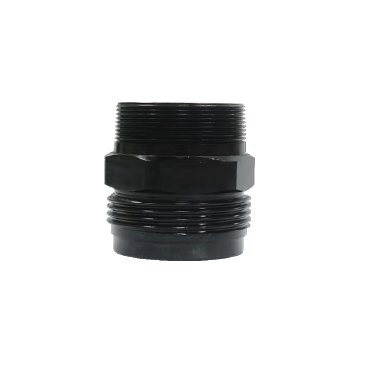

POLYMER MALE CONNECTOR
| Outer Diameter (mm) |
Length (mm) |
Weight per piece (kg) |
| 20 x R1/2” |
62.5 |
0.038 |
| 25 x R1/2” |
65 |
0.056 |
| 25 x R3/4” |
70 |
0.056 |
| 25 x R1” |
71 |
0.056 |
| 40 x R1” |
71 |
0.143 |
| 40 x R1-1/4” |
111 |
0.143 |
| 40 x R1-1/2” |
115 |
0.143 |
AL MALE CONNECTOR
| Outer Diameter (mm) |
Length (mm) |
Weight per piece (kg) |
| 50 x R1-1/2” |
121 |
0.587 |
| 50 x R2” |
125 |
0.597 |
| 63 x R2” |
123 |
0.597 |
| 63 x R2-1/2” |
127 |
0.690 |
DROP
| Outer Diameter (mm) |
Height (mm) |
Length (mm) |
Weight per piece (kg) |
| 25 x 25 |
140 |
36 |
0.286 |
| 40 x 25 |
134 |
36 |
0.306 |
| 50 x 25 |
154 |
37.5 |
0.326 |
| 63 x 25 |
132 |
37.5 |
0.329 |
| 80 x 25 |
235 |
231 |
1.000 |
| 100 x 25 |
235 |
231 |
1.120 |
| 168 x 25 |
235 |
231 |
4.700 |

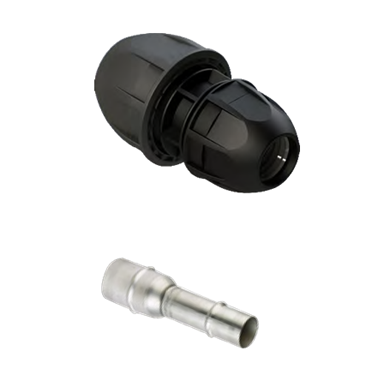

REDUCER
| Outer Diameter (mm) |
Length (mm) |
Weight per piece (kg) |
| 25 x 20 |
41 |
0.100 |
| 40 x 25 |
43 |
0.210 |
| 50 x 25 |
45 |
0.355 |
| 50 x 40 |
49 |
0.430 |
| 63 x 40 |
53 |
0.540 |
| 63 x 50 |
61 |
0.615 |
| 80 x 50 |
65 |
0.530 |
| 80 x 63 |
79 |
0.584 |
| 100 x 50 |
85 |
1.290 |
| 100 x 63 |
83 |
1.850 |
| 100 x 80 |
87 |
1.708 |
| 168 x 80 |
127 |
1.888 |
| 168 x 100 |
131 |
1.988 |
FLANGE
| Pipe Diameter (mm) |
Outer Diameter (mm) |
PCD (mm) |
Hole Diameter (mm) |
Weight per piece (kg) |
| 80 |
200 |
160 |
18 |
1.900 |
| 100 |
220 |
180 |
18 |
2.000 |
| 168 |
279 |
240 |
22 |
3.800 |
IN LINE BALL VALVE
| Pipe Diameter (mm) |
Length (mm) |
Weight (kg) |
| 20 |
155 |
0.890 |
| 25 |
160 |
0.890 |
| 40 |
205 |
0.900 |
| 50 |
224 |
1.900 |
| 63 |
269 |
2.605 |

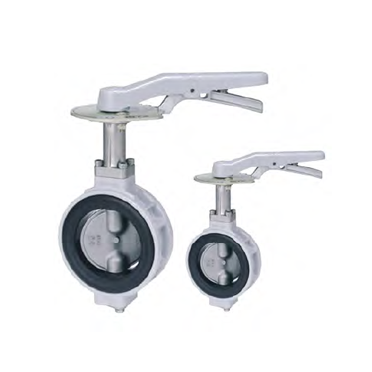

BUTTERFLY VALVE
| Pipe Diameter (mm) |
Seal OD (mm) |
Weight (kg) |
| DN80 |
118 |
3.200 |
| DN100 |
150 |
4.300 |
| DN 168 |
205 |
7.800 |

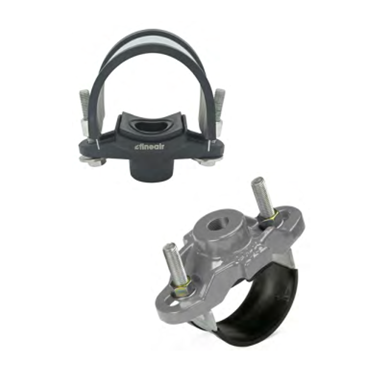

SADDLE DROP OUTLET
| Pipe Diameter (mm) |
R Thread |
Thickness (mm) |
Length (mm) |
Weight (kg) |
| 25 |
1" |
50 |
90 |
0.87 |
| 40 |
1" |
72 |
124 |
0.86 |
| 50 |
1" |
88 |
164 |
1.2 |
| 63 |
1" |
88 |
164 |
1.2 |
| 80 |
1" |
80 |
137 |
1.8 |
| 100 |
1" |
90 |
158 |
1.9 |
| 168 |
1" |
90 |
235 |
3.4 |
