Fabricated Slide Gate Valves, Knife Gate Valves, Dealers, India

We are leading Supplier, Wholesaler, Dealer, Trader of Fabricated Slide Gate Valves ( Dealer for Jash Engineering Ltd.), from Baner, Pune, Maharashtra, India.

We provide our range to ALL OVER THE WORLD. Majorly we target customers from Bangalore, Hyderabad, Chennai, Visakhapatnam, Bellary, Pune, Chhatrapati Sambhajinagar (Aurangabad), Mahad, Chiplun, Lote, Mumbai, Nagpur, Goa, Baddi, Indore, Kolkata, Chandigarh, Delhi.

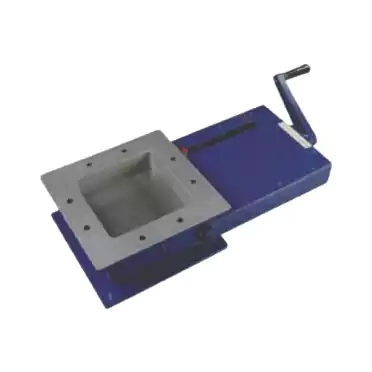

SLIDE GATE VALVE TYPE : VEG

Application :
A Custom-built product to cater the isolation application of odd sizes

Media / Material :
For all type of liquids, powders and granules material.

Features:

Specially designed slide gate valve for odd size requirements
Soft seated valves for pressure tight application
Metal seated for material tight requirement
Rear end sealing by packing glands
Rising spindle / Non rising spindle

SLIDE GATE VALVE TYPE : VEG

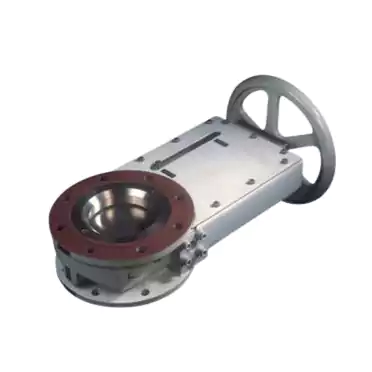

SLIDE GATE VALVE TYPE : ZFB-PAM

Application :As a discharge and filling unit to feed continuously in and out of a vacuum drying unit.

Media / Material : Suitable for all dry & free flowing materials requiring pressure or vacuum tight shut-off

Features:

Uni-directional valve with peripheral face sealing
Full flanged rigid housing
Patented inflatable Pressure Airmatic seal for pressure and vacuum tight shut-off

Pressure testing : Leakage rate 1 as per DIN 3230 in both direction i.e. zero leakage

SLIDE GATE VALVE TYPE : ZFB-PAM

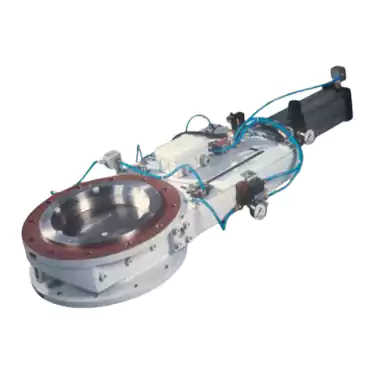

SLIDE GATE VALVE TYPE : ZFB-STD

Application:

Suitable for shut off application in pneumatic conveying where conveying pressure is up to 1 bar
As isolation valve or emergency shut off during downstream maintenance
Material tight isolation valve, locking & leak tight shut-off at outlet of vessel / silo for conveying of fly ash
Below cyclone and in branch lines for material tight shut off

Media / Material:
Specially designed for handling fine powders or granulous materials where low pressure tight shut-off is required

Features:

Uni-directional valve with peripheral face sealing
Full flanged rigid housing
Tapering down housing surface to avoid material retention
Large gaps over seat face to enable gate closure in standing column
Soft seated for 1 bar pressure tight requirement
Rear end sealing by packing glands
Non-rising spindle
Opening / closing indication

SLIDE GATE VALVE TYPE : ZFB-STD
