Knife Gate Valves ( Dealer for Jash Engineering Ltd.)
We are leading Supplier, Wholesaler, Dealer, Trader ofKnife Gate Valves ( Dealer for Jash Engineering Ltd.) from Baner, Pune,Maharashtra, India.
We provide our range to ALL OVER THE WORLD. Majorly we target customers from Bangalore, Hyderabad, Chennai, Visakhapatnam, Bellary, Pune, Chhatrapati Sambhajinagar (Aurangabad), Mahad, Chiplun, Lote, Mumbai, Nagpur, Goa, Baddi, Indore, Kolkata, Chandigarh, Delhi.

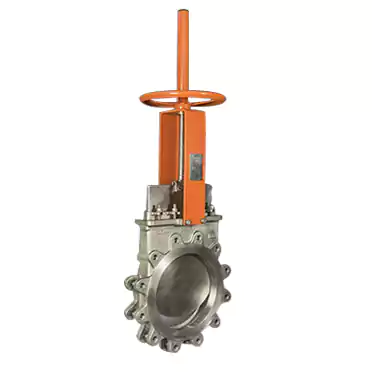

Jash Make Knife Gate Valve - Model: ZFI, Series C201/C211
| Application | These unidirectional valves are most suitable for pressure-tight shut-off for water, seawater, mild slurry, liquid-solid mixes and dry bulk solid applications. |
|---|---|
| Available sizes | DN 50 (2”) to DN 1200 (48”) |
| Pressure Rating | PN3 (45 PSI), PN6 (90 PSI) and PN10 (150 PSI) depending upon housing material, primarily for liquid applications. |
| Temperature suitability | -20°C to 250°C |
| Seating | Resilient seat with metallic band |
| Bonnet | Bolton type (Optional) |
| Flange drilling standard : | ASMEB16.5/ASMEB16.47#150/BS-EN1092PN10/PN16 |
| Modes of operation | Manual, chain wheel, pneumatic, electric actuator and Hydraulic |
Jash Make Knife Gate Valve - Model: ZFI, Series C201/C211

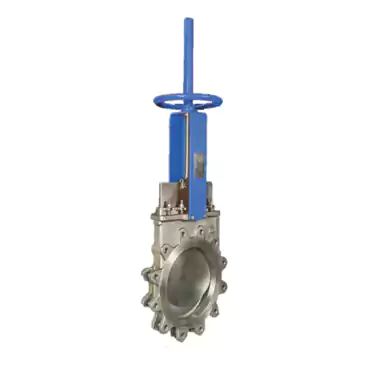

Jash Make Knife Gate Valve - Model: ZFI, Series C202/C212
| Application | These unidirectional valves are most suitable for pressure-tight shut-off for water, seawater, mild slurry, liquid-solid mixes and dry bulk solid applications. |
|---|---|
| Available sizes | DN 50 (2”) to DN 1200 (48”) |
| Pressure Rating | PN3 (45 PSI), PN6 (90 PSI) and PN10 (150 PSI) depending upon housing material, primarily for liquid applications. |
| Temperature suitability | -20°C to 250°C |
| Seating | Resilient seat with metallic band |
| Bonnet | Bolton type (Optional) |
| Flange drilling standard : | ASMEB16.5/ASMEB16.47#150/BS-EN1092PN10/PN16 |
| Modes of operation | Manual, chain wheel, pneumatic, electric actuator and Hydraulic |
Jash Make Knife Gate Valve - Model: ZFI, Series C202/C212

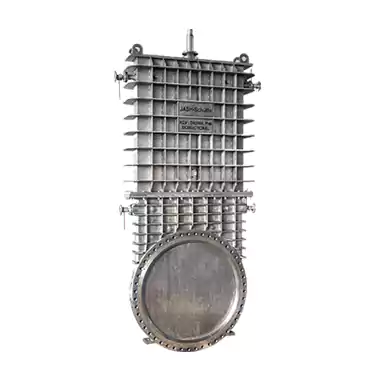

Jash Make Knife Gate Valve - Model: ZFI-BD, Series C205/C215
| Application | These unidirectional valves are most suitable for pressure-tight shut-off for water, seawater, mild slurry, liquid-solid mixes and dry bulk solid applications. |
|---|---|
| Available sizes | DN 50 (2”) to DN 1200 (48”) |
| Pressure Rating | PN3 (45 PSI), PN6 (90 PSI) and PN10 (150 PSI) depending upon housing material, primarily for liquid applications. |
| Temperature suitability | -20°C to 250°C |
| Seating | Resilient seat with metallic band |
| Bonnet | Bolton type (Optional) |
| Flange drilling standard : | ASMEB16.5/ASMEB16.47#150/BS-EN1092PN10/PN16 |
| Modes of operation | Manual, chain wheel, pneumatic, electric actuator and Hydraulic |
Jash Make Knife Gate Valve - Model: ZFI-BD, Series C205/C215
