Compressed Air Piping Systems ( Dealer for Fine Air Pneumatics Pvt. Ltd.)

Authorized Dealer For :

Fine Air Pneumatics Pvt. Ltd.
Logo

We are leading Supplier, Wholesaler, Dealer, Trader of Compressed Air Piping Systems, Compressed Air Aluminium Pipes, Nitrogen Aluminium Pipes, Argon Aluminium Pipes, Vaccum Aluminium Pipes from Baner, Pune, Maharashtra, India.

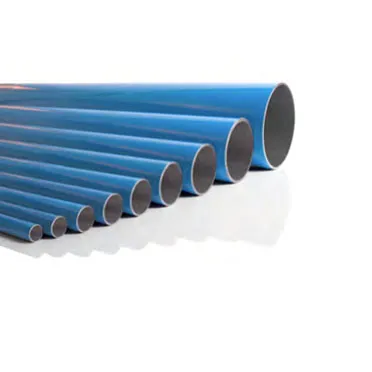

Compressed Air Aluminium Pipe

Specification Outer Diameter (mm) Inner Diameter Length Discription
25 25.4 22.2 6 meter Blue Aluminium Pipe 6m,DN25
40 40 36.8 6 meter Blue Aluminium Pipe 6m,DN40
50 50.8 47.4 6 meter Blue Aluminium Pipe 6m,DN50
63 63 60 6 meter Blue Aluminium Pipe 6m,DN63
80 84.8 80.8 6 meter Blue Aluminium Pipe 6m,DN80
100 101.8 97.2 6 meter Blue Aluminium Pipe 6m,DN100
168 168 162 6 meter Blue Aluminium Pipe 6m,DN168
Compressed Air Aluminium Pipe

Compressed Air Aluminium Pipe

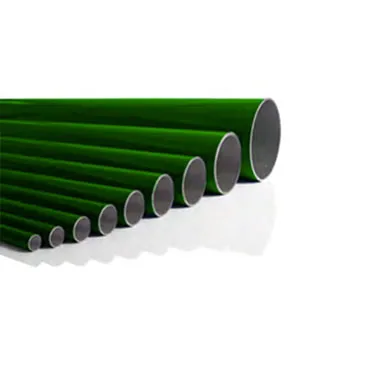

Nitrogen Aluminium Pipe

Specification Outer Diameter(mm) Inner Diameter Length Discription
25 25.4 22.2 6 meter Green aluminium Pipe 6m,DN25
40 40 36.8 6 meter Green aluminium Pipe 6m,DN40
50 50.8 47.4 6 meter Green aluminium Pipe 6m,DN50
63 63 60 6 meter Green aluminium Pipe 6m,DN63
80 84.8 80.8 6 meter Green aluminium Pipe 6m,DN80
100 101.8 97.2 6 meter Green aluminium Pipe 6m,DN100
168 168 162 6 meter Green aluminium Pipe 6m,DN168
Nitrogen Aluminium Pipe

Nitrogen Aluminium Pipe

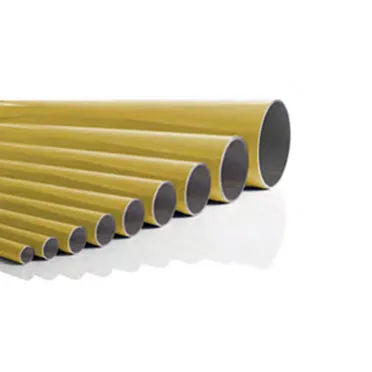

Argon Aluminium Pipe

Specification Outer Diameter(mm) Inner Diameter Length Discription
25 25.4 22.2 6 meter Yellow aluminium Pipe 6m,DN25
40 40 36.8 6 meter Yellow aluminium Pipe 6m,DN40
50 50.8 47.4 6 meter Yellow aluminium Pipe 6m,DN50
63 63 60 6 meter Yellow aluminium Pipe 6m,DN63
80 84.8 80.8 6 meter Yellow aluminium Pipe 6m,DN80
100 101.8 97.2 6 meter Yellow aluminium Pipe 6m,DN100
168 168 162 6 meter Yellow aluminium Pipe 6m,DN168
Argon Aluminium Pipe

Argon Aluminium Pipe

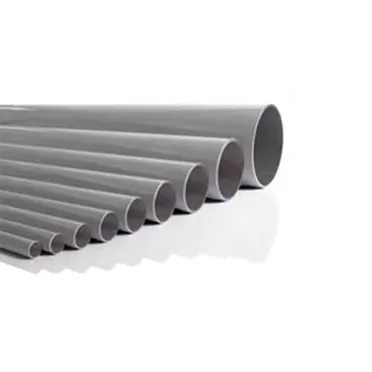

Vaccum Aluminium Pipe

Specification Outer Diameter(mm) Inner Diameter Length Discription
25 25.4 22.2 6 meter Grey aluminium Pipe 6m,DN25
40 40 36.8 6 meter Grey aluminium Pipe 6m,DN40
50 50.8 47.4 6 meter Grey aluminium Pipe 6m,DN50
63 63 60 6 meter Grey aluminium Pipe 6m,DN63
80 84.8 80.8 6 meter Grey aluminium Pipe 6m,DN80
100 101.8 97.2 6 meter Grey aluminium Pipe 6m,DN100
168 168 162 6 meter Grey aluminium Pipe 6m,DN168
Vaccum Aluminium Pipe

Vaccum Aluminium Pipe

MODULAR COMPRESSED AIR PIPING

Compressed Air Piping Various Fittings Polymer & Aluminium
